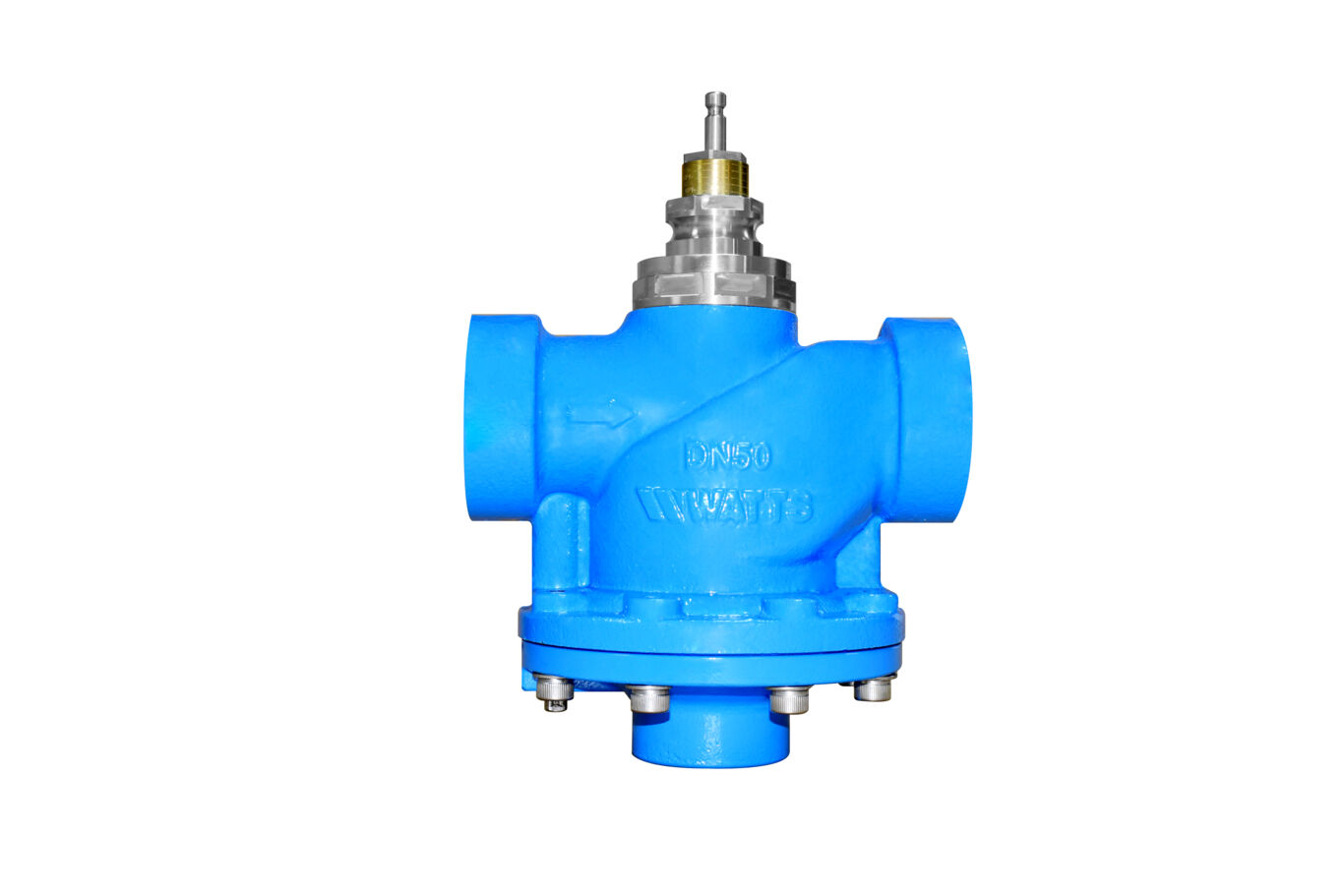

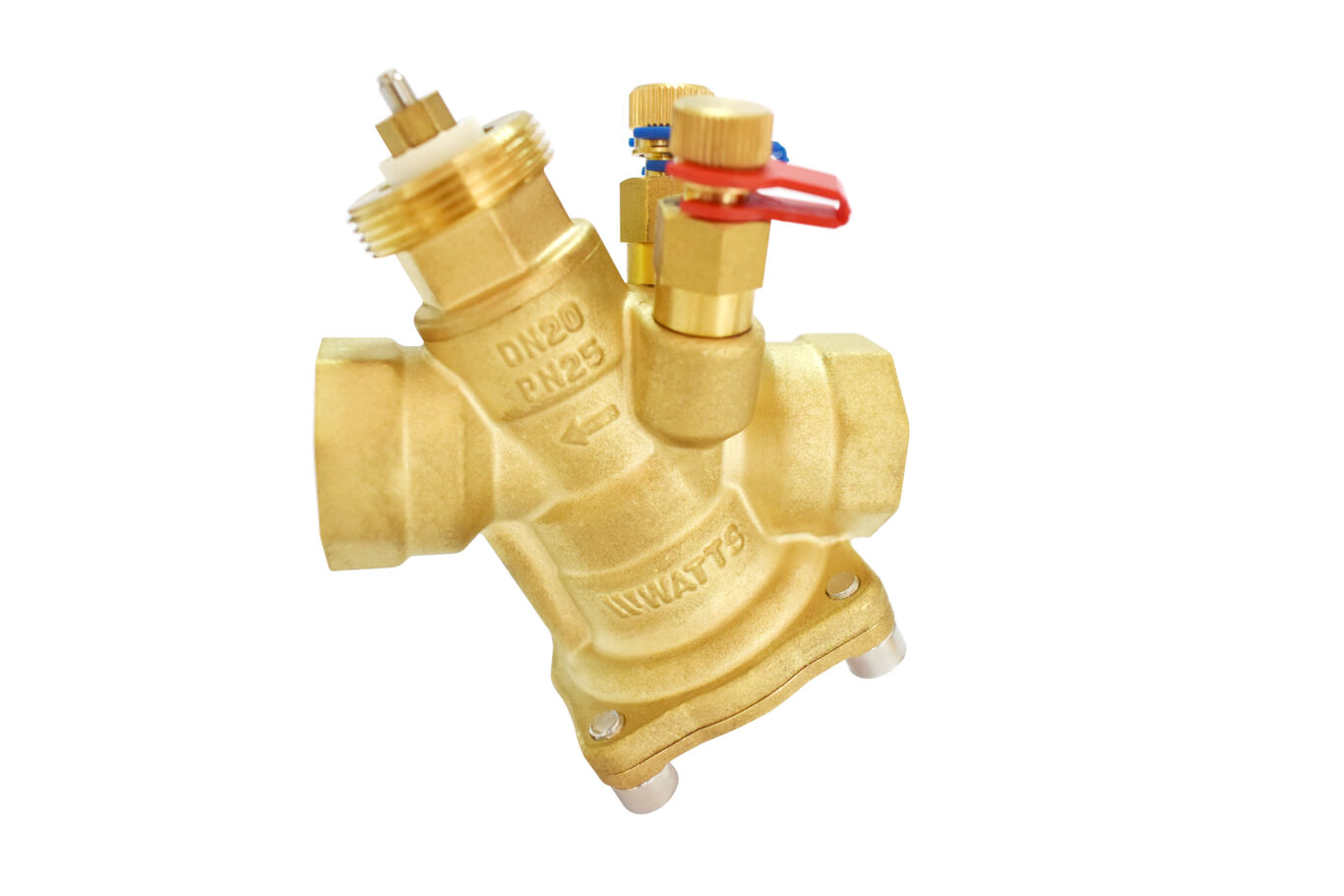

W-PICVXXX-25T/25Q
Dynamic Balancing Electric Control Valve
Series W-PICVXXX-25T/25Q is mainly used in air conditioning system and heating system's terminal air conditioning unit, fresh air unit, all kinds of plate heat exchanger, etc. In air conditioning and heating system, it is necessary to control the flow rate at the end of air handle unit (AHU) and pre-cooling air handling unit (PAU) according to the change of indoor temperature. The electric control valve is the key device used to control the flow. The valve can
convert the temperature signal fed back from the temperature sensor into the voltage signal to drive the opening of the control valve through the driver, so as to achieve the purpose of controlling the flow rate.
Features
- Equal percentage control characteristics
- Constant differential pressure between the two ends of the control valve
- Preset maximum flow rate to facilitate on-site debugging
- Designed with front and rear differential pressure measuring nozzles
- Shut-off function
