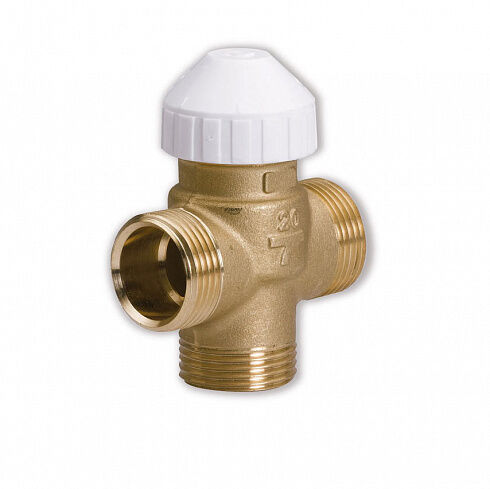

3131
3-Way Fan Coil Valve
The 3131 Series 3-way Brass Fan Coil Valves are used for controlling the flow of hot or cold water in heating and air conditioning systems. They can be used both as mixing and diverting valve, except for model 31311 which can only be used as diverting valve. They are operated by electric actuators with a max. stroke of 2.5 mm. such as the electrothermic actuator series 22C. Models are available in 1/2, 3/4 and 1 inch sizes with MPT connections.
Features
- Nominal pressure of 16 bar
- Max operating temperature of 100°C
