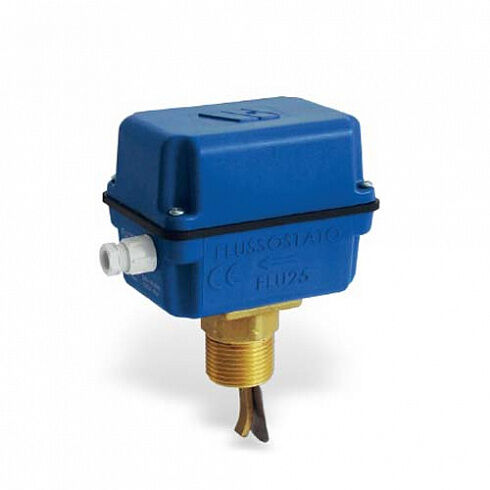

FLU25PL
×
![]()
Flow Switch
Flow switch for liquids for piping from DN 1 in to DN 8 in. Plastic case. Brass fitting. 3-contact microswitch: 10 (5) A - 230V. Maximum fluid operating pressure: 10 bar. Maximum fluid operating temperature: 110°C. Maximum room temperature: 85°C. Equipped with Minimum and Maximum flow rate adjuster screw.
Features
- Fiberglass-reinforced plastic case and cover
- IP rating: IP64
