SD-3-MF 3/8
Part of the SD-3 Series
Ordering Code: 0061657
UPC: 098268848953

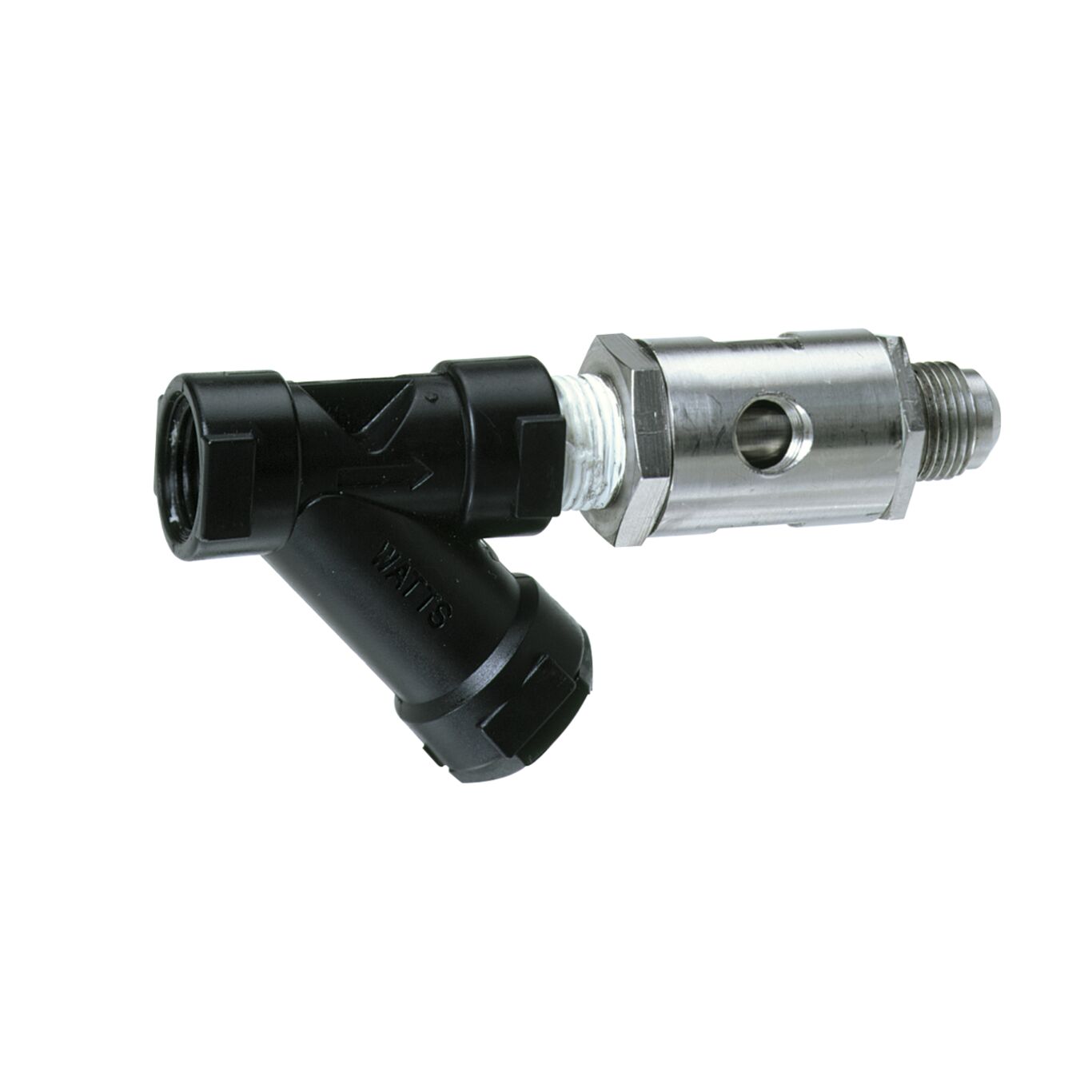

3/8 IN Dual Check Valve Backflow Preventer, Atmospheric Vent, Wye Pattern Strainer, SAE Male Flare Outlet Connection
This 3/8 IN dual check valve backflow preventer with atmospheric port and strainer for carbonated beverage machines prevents the reverse flow of polluted water, such as carbon dioxide gas and carbonated water, from entering into the potable water supply due to backpressure backflow. It consists of stainless steel body construction with internal rubber components and is designed for continuous or intermittent pressure applications. It has an atmospheric port that provides visual indication of failure of the second check and a wye pattern strainer. It is ideal for use on post-mix carbonated beverage equipment and dispensing equipment for tea and coffee. The connections are female NPT inlet with SAE male flare outlet. Maximum working pressure is 150 psi (10 bar).
Specifications | |
---|---|
EANUCCCode | 098268848953 |
MaximumTemperature-Fahrenheit | 130 |
MaximumWorkingPressure-BAR | 10.30 |
MaximumWorkingPressure-PSI | 150 |
MinimumTemperature-Celsius | 12.00 |
MinimumTemperature-Fahrenheit | 54 |
OutletThreadType | NPT |
