SR909RPDA-OSY-GPM 8
Part of the 909RPDA Series
Ordering Code: 0385660
UPC: 098268793048

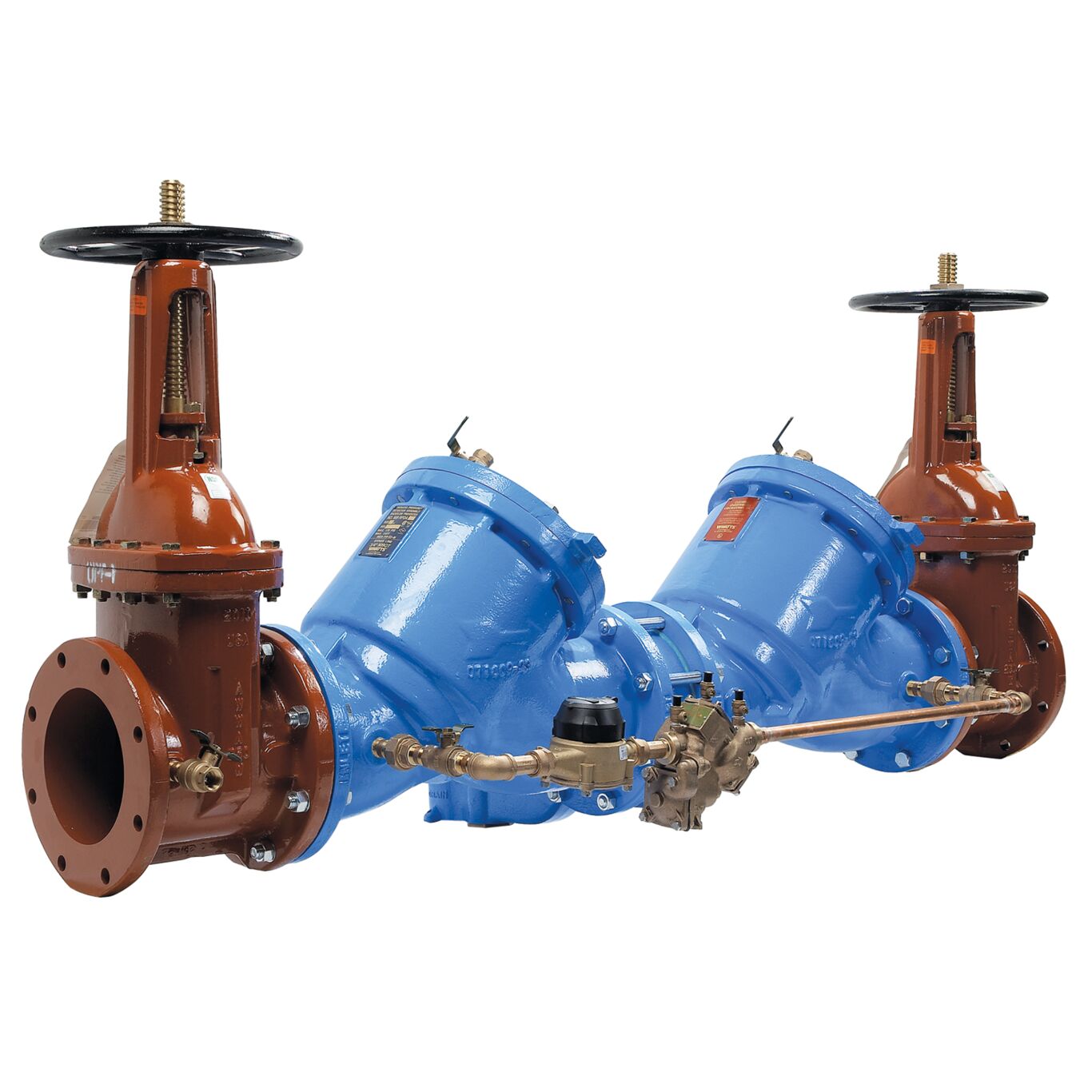

8 In Cast Iron Reduced Pressure Detector Assembly Backflow Preventer, OSY Shutoff, Gallons/Minute Meter, Silicone Rubber Check Discs, ArmorTek Coating
This 8 inch reduced pressure detector backflow preventer assembly with its exclusive design incorporating the patented air-in and water-out principle for protection from the reverse flow of fire protection system substances from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards. This assembly consists of an epoxy coated cast iron body using ArmorTek(TM) coating technology for advanced corrosion resistance construction, OSY resilient seated gate valves, captured spring check valves with silicone rubber, replaceable seats, top mounted test cocks, a pressure differential relief valve and comes with a GPM meter to detect underground leaks and unauthorized water use. The coating on this backflow assembly uses ArmorTek technology to resist corrosion due to microbial induced corrosion (MIC) or exposed metal substrate.
Features
- Utilizes advanced ArmorTek coating technology to resist corrosion of internals
- The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Furnished with a cubic feet per minute meter
- Health hazard application
- Detects underground leaks and unauthorized water use
- Maximum flow at low pressure drop
- Simple design for easy maintenance
- Compact for economy combined with performance
Specifications | |
---|---|
ArmorTekTechnology | Yes |
BuyAmericanAct | NO |
EANUCCCode | 098268793048 |
MaximumTemperature-Fahrenheit | 140 |
MaximumWorkingPressure-BAR | 12.10 |
MaximumWorkingPressure-PSI | 175 |
MinimumTemperature-Celsius | 0.50 |
MinimumTemperature-Fahrenheit | 33 |
TrademarkName-Primary | None |
