BF-04-131-15-M2 2 1/2
×
![]()
Part of the BF-04 Series
Ordering Code: 0525793
UPC: 098268606164

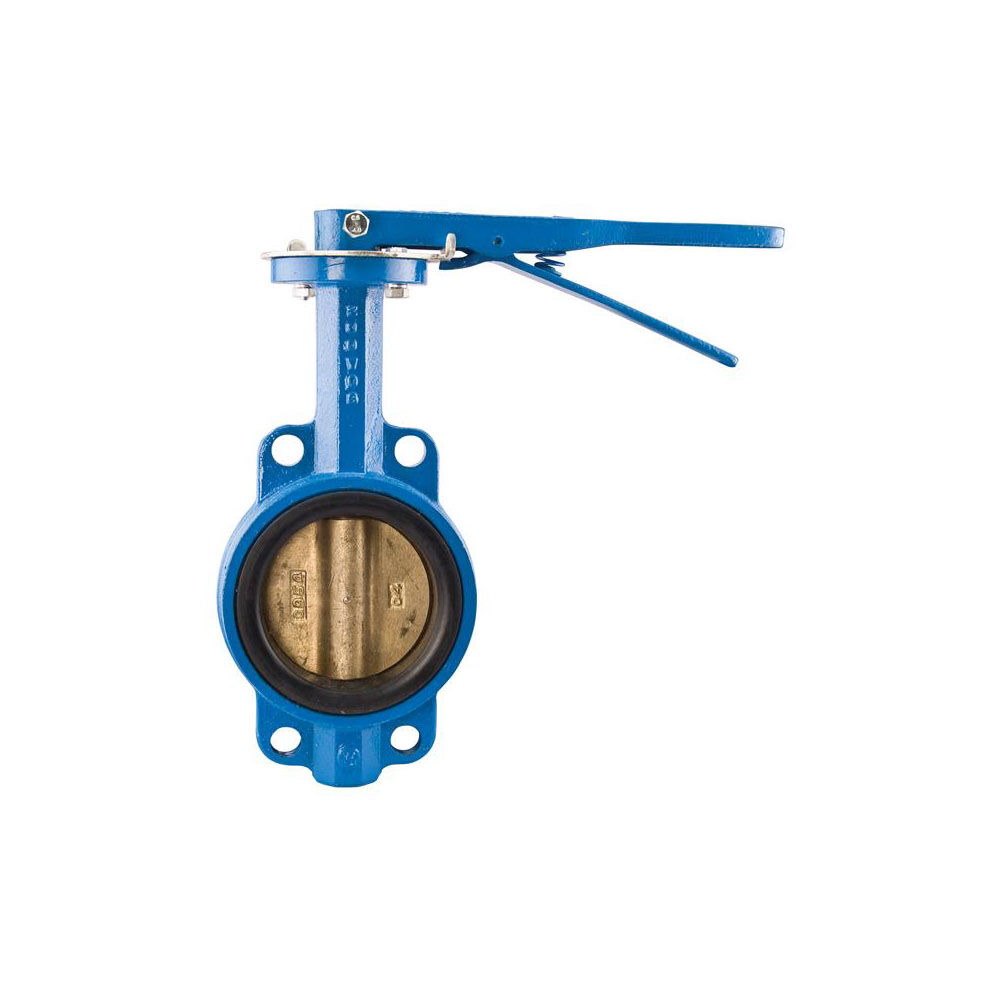

2 1/2 IN Butterfly Valve, Wafer, Ductile Iron Body, 316 Ss Disc, 316 SS Shaft, EPDM Seat, Lever Handle
This 2 1/2 IN wafer style butterfly valve, model BF-04-131-15-M2, is used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features cast iron body construction, stainless steel disc, EPDM seat, stainless steel shaft, mounting pad for 10 position lever.
| Specifications | |
|---|---|
| BodyMaterial | Ductile Iron |
| EANUCCCode | 098268606164 |
| MaximumOperatingTemperature-Fahrenheit | 248 |
| MaximumWorkingPressure-PSI | 200 |
| MinimumTemperature-Fahrenheit | 33 |
| StemShaftMaterial | 316 Stainless Steel |
